FAAC MODEL 402 / 422 HYDRAULIC SWING GATE OPERATORS

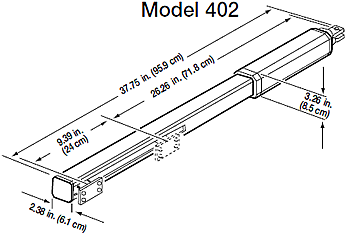

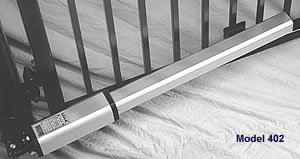

Model 402 dimensions

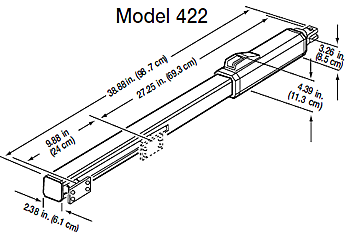

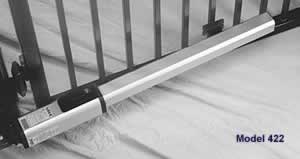

Model 422 dimensions

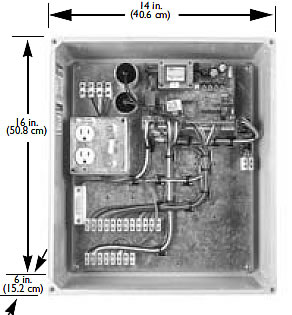

Model 402/422 operators are controlled by the 450 MPS Control Panel.
-
One 450 MPS operates single leaf or bi-parting gates
-
Choice of 6 operating modes including:
- "pulse-to-open, pulse-to-close"
- automatic timed closure, including NEW HOLD OPEN function
- "man present" (separate open and close contacts) -
Easy interconnection of loop detectors, photocells, etc. to
reverse a gate if an obstacle is sensed -
Easy interconnection of actuating devices like remote
control radios, key pads and telephone entry systems -
On-board diagnostic LEDs
-
Concealed positive gate stops available

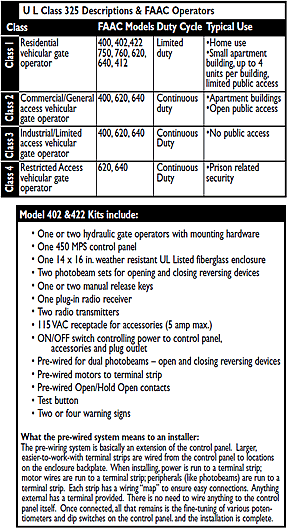

| Parameter |
Model 402 | Model 422 |
| Application | Single family residence, single leaf or bi-parting gate (vehicles only, not for pedestrian use) (not recommended for solid gates) | |
| Cycles per hour | 30 | 30 |
| Maximum gate swing | 90 degrees | 90 degrees |
| 90 degree opening time |
12 seconds | 12 seconds |
| Maximum weight per gate leaf | 900 pounds (410 kg) | 900 pounds (410 kg) |
| Maximum length per gate leaf | 10 feet (3 m) | 10 feet (3 m) |
| Approx. operating temperature range | -33°F to 165°F (-36°C to 74°C) (For extreme temperature conditions, arctic grade fluid is available upon request) |
|
| Hydraulic locking | Available in opened or closed positions | Available in opened and / or closed positions |
| Voltage | 115 VAC (2.5 A) or 230 VAC (1.5 A) | |
| Note: Operator specifications are approximate. Environmental factors can change the performance of the operator. Your installer will advise you which model of operator will work best for your site and application. | ||

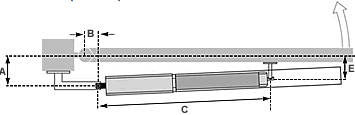

Mounting dimensions for OUTWARD-swinging 402 operators
402 operators, top view
Dimensions
A 4.5 in. (11.4 cm) C 26.5 in. (67.3 cm)
B 4.5 in. (11.4 cm) E MUST be less than A
Mounting dimensions for INWARD-swinging 402 operators
402 operators, top view
Dimensions
A 4.5 in. (11.4 cm) C 35.5 in. (90.2 cm)
B 4.5 in. (11.4 cm) D If greater than 2 in. (5 cm)
construct a recess liner.
E MUST be less than A
Mounting dimensions for OUTWARD-swinging 422 operators, top view
Dimensions
A 4.75 in. (12 cm) C 27 in. (68.6 cm)
B 4.75 in. (12 cm) E MUST be less than A
Mounting dimensions for INWARD-swinging 422 operators, top view
Dimensions
A 4.75 in. (12 cm) D max 2.75 in. (7 cm)
B 4.75 in. (12 cm) E MUST be less than A
C 36.63 in. (93 cm)
