Slim-line Automated System for Sliding Doors
All FAAC automation products are robust, reliable and manufactured to the international quality standard ISO9001

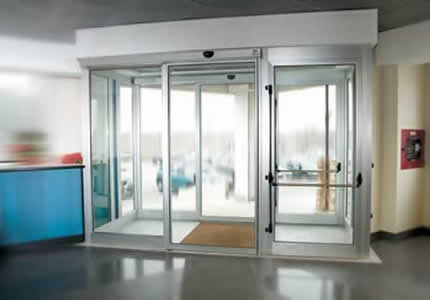

The FAAC A100 slimline automation system for sliding doors is rated for continuous duty for single and double leaf applications.
| A100 TECHNICAL SPECIFICATION | ||
| Feature | A100 Compact | A100 Compact2 |
| No. of leaves | 1 | 2 |
| Max leaf weight |
110kg | 70 + 70kg |
| Transit space (VP) | 700 ~ 3000mm | 800 ~ 3000mm |
| Max thickness of framed leaf |
60mm | |
| Power supply |
115V/230V ~ 50 /60 Hz | |
| Absorbed power |
100 W | |
| Use frequency |
100 % | |
| Drive unit |
24 Vdc motor with encoder | |
| Head profile length LT | VP x 2 + 100mm | |
| Opening speed (load free) |
5~70cm/sec | 10~140 cm/sec |
| Closing speed (load free) | 5~70cm/sec | 10~140 cm/sec |
| Pause time adjustment |
0 ~ 30 sec | |
| Night pause time adjustment |
0 ~ 240 sec | |
| Static force adjustment |
automatic | |
| Partial opening | 10% ~ 90% of total opening | |
| Anti-crush device active | at opening/closing | |
| Photocells fail safe | Yes (can be activated by programming) | |
| Protection class | IP23 for indoor use | |
| Operating ambient temperature | -20°C to + 55°C | |
THE A100 RANGE
Slimline sliding door operator
Measuring just 100mm in height and with a depth of 135mm, the A100 is one of the smallest automatic door operators currently available, making it ideal for installations where space is severely restricted.
Suitable for single leaf doors of up to 110kg or two leaves with a combined weight of 140kg. The A100 is designed for continuous operation, meeting demand for a compact automatic operator for doors in areas of high traffic.
Highly energy efficient and extremely cost effective, the A100 door automation system operates with just 100 watts of absorbed power. The compact nature of the system also means less raw materials are used during manufacture, further reducing its impact on the environment.
Featuring a 100% duty cycle and a very fast response time, the A100 also leads the way in safety features. A unique battery backup system can be specifi ed to give up to 20 minutes continuous use in the event of a power failure.
HEAD PROFILE
 |
|
|
|
| ACCESSORIES | |
||
 |
Miniswitch GLS Photocell |  |
|
 |
|
||
| Passive infrared sensor | |
||
 |
|
||
| Microwave radar | |
||
 |
|
||
| T20/T21 key-operated push buttons, wall and flush mounting, with emergency release device | |
||
 |
|
||
| Leaf securing profiles for glass | |
||
 |
|
||
| Electro-mechanical lock with internal release device | |
||
 |
|
||
| Padlock surveillance with possibility of visual or acoustic signal in case of malfunction | |
||
 |
|
||
| Emergency batteries with recharging card. Guarantee a 20 minute range of continuous duty | |
||
 |
|
||
SD KEEPER DETAILS
 |
|
|
|
|
|
|
| SD KEEPER WITH DISPLAY | SD KEEPER functions keyboard (standard) Available programs |
|
||||
 |
|
|||||
 |
1. manual |  |
2. two-way/one-way |  |
|
|
 |
|
|||||
| 3. partial opening / total opening |
 |
4. automatic/ hold open | |
|||
 |
 |
|
||||
| 5. night/lock | |
|||||
 |
|
|||||
| self diagnosis by means of LEDs | |
|||||
 |
|
|||||
| function lock out by contact or push button | |
|||||
 |
|
|||||
| provision for programming display connection | |
|||||
| SD KEEPER | |
|||||
 |
|
|||||
 |
|
|||||
| Programming display main functions | |
|||||
 |
|
|||||
| access password insertion |
 |
opening speed adjustment |
|
|||
 |
|
|||||
| closing speed adjustment |
 |
anti-crush adjustment | |
|||
 |
|
|||||
| pause time adjustment |  |
anti-crush function management |
|
|||
 |
|
|||||
| diagnostic visualisation |  |
weekly calendar management |
|
|||
 |
|
|||||
 |
|
|||||
| interlock management with or w/o memory | |
|||||
 |
|
|||||
| operating functions selection with battery in use | |
|||||
 |
|
|||||
| timer function by means of back-up battery (in SD keeper) |
|
|||||
 |
|
|||||
| cycle counter display | |
|||||
 |
|
|||||
| manages 5 daily time bands | |
|||||
